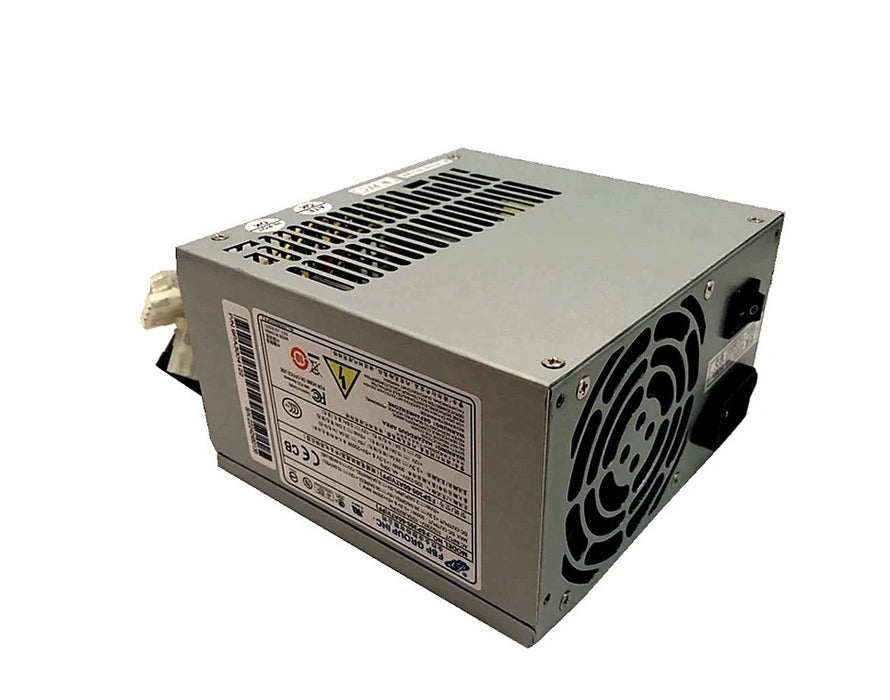

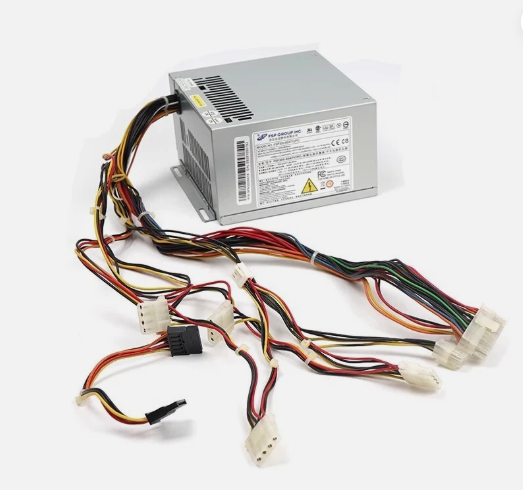

New FSP300-60ATV FSP SPARKLE 300W ATX Power Supply UNITS

description

fsp300-60atv fsp sparkle 300w atx power supply units
part number:fsp300-60atv
feature:
complied with atx12v 2.0 standard
high efficiency, low noise and ripple and reliability
remote on/off function
internal 80mm 12v dc fan included
noise killer (thermal fan speed control function)
complies with fcc part 15 subpart j class b and cispr 22 class b
output over voltage, short circuit, and over current protection
100% hi-pot, ate, and burn-in tested
re-settable power shut down
approved by ul 60950, tuv, iec 60950, nemko (cb report)
included on/off switch
input:
input range: ±10% of 115vrms/57~ 63hz, ±10% of 230vrms/47~ 53hz, manual selection.
input current: 7a (rms) @ 115vrms/60hz, 4a (rms) @ 230vrms/50hz
inrush current: 80a max cold start, 100a max warm start measured at 115vrms/60hz
output:
total output: 300w
+3.3v and +5v total output not exceed 120w
+3.3v is load on 20a then +5v maximum load is 10.8a; +5v is load on 20a then +3.3v maximum load is 6a
+12v1+12v2 total output not exceed 264w
+3.3v, +5v, +12v1, and +12v2 total output not exceed 286w
connectors: 20/24pin main power; 4pin p4 power; 4x peripheral; 1x sata; 1x floppy
dielectric withstand: input to frame ground 1800v ac for 1 second
insulation resistance: 20 meg. ohm min.
efficiency: 70% minimum measured at nominal ac main voltage with maximum load on all outputs
rise time: less than 20ms on all outputs
hold-up time: 12ms minimum at 115v/230vac
power New signal: power on delay time 100 ms to 500 ms, off delay 1ms minimum (ttl and cmos compatible)
leakage current: not exceed 3.5ma
mtbf:100,000 hours on maximum load at +25°c
