New FSP GROUP 2U Server Power Supply 500W FSP500-702UH

description

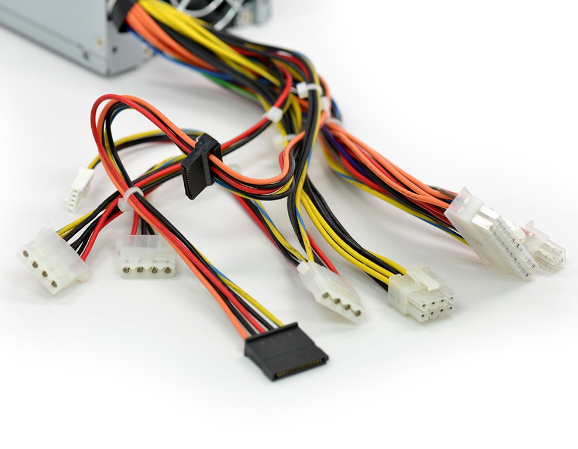

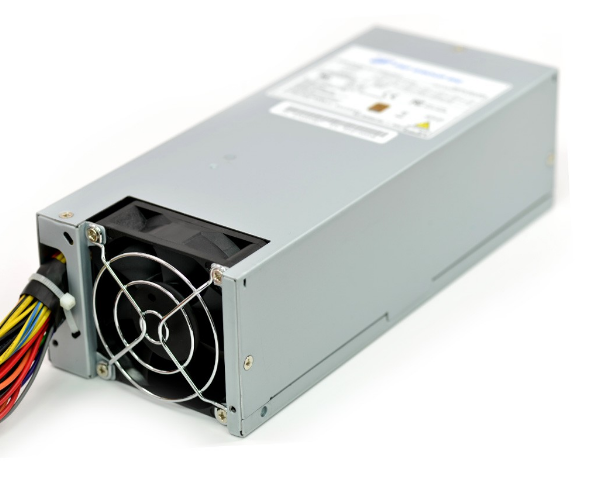

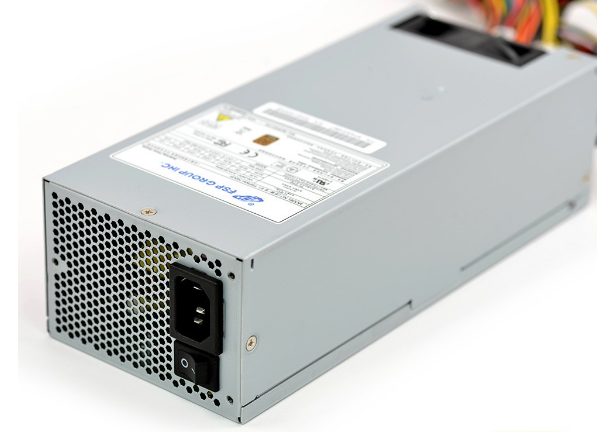

fsp500-702uh 500w fsp group 2u server power supply unit

specifications

model name
fsp500-702uh

wattage
500w

dimension
240mm (l) × 100 mm (w) × 70mm (h)

product highlight
efficiency level
80 plus bronze

altitude
5000m

general specification
effciency
85% 230vac

voltage regulation
+3.3v, +12v, +5v, +5sb: ±5%
-12v: ±10%

input electrical specification
input frequency
47 ~ 63 hz

input current
115v@ 8.0 amps-rms maximum
230v@ 4.0 amps-rms maximum

output specification
hold-up time
115v/60hz 16msec. minimum@100% load,
230v/50hz 16msec. minimum@100% load

ouput voltage regulation
+3.3vdc output : +3.5 vdc minimum, + 4.5vdc maximum
+5vdc output : +5.5 vdc minimum, + 6.82vdc maximum
+12vdc output : +13.4 vdc minimum, + 15.6vdc maximum

ripple & noise
115v-rms/230v-rms 5v 20ms maximum
115v-rms/230v-rms 12v 20ms maximum

over current protection
3.3v:50mv p-p
5v:50mv p-p
12v1:120mv p-p
12v2:120mv p-p
12v3:120mv p-p
-12v:120mv p-p
5vsb:50mv p-p
-5v:100mv p-p

environmental requirement
temperature range
operating : 0 to +50℃
storage :-20 to +80℃

humidity
operating : 85% to % rh, non-condensing
storage : 95% to % rh, non-condensing

mbtf
the power supply have a minimum predicted mtbf(mil-hdbk-217) of 100,000 hours of continuous operation at 25℃, 75% output load, and nominal ac inout voltage

safety
ce,fcc,tuv,ul/cul

output voltage and current rating

+3.3v
+5v
+12v1
+12v2
+12v3
-12v
+5vsb

ripple-noise(r-p) mv
50mv
50mv
120mv
120mv
120mv
120mv
50mv

regulation load %
±5%
±5%
±5%
±5%
±5%
±10%
±5%

output max.(a)
20a
20a
16a
16a
16a
0.5a
3a

output min.(a)
0.5a
1a
0.5a
1a
1a
0a
0a

notes

5v, 3.3v, 12v, -12v will have the regulation to 10% when all load take off.
the 12v1 and 12v2 and 12v3 total output shall not exceed 39a.
the +3.3v and +5v total output shall not exceed 130 watts.
the total output shall not exceed 500 watts

features
• 80 plus bronze
• low ripple & noise
• output over voltage protection
• short circuit protection on all outputs
• resettable power shut down
• internal 4 cm fan
• 100% burn-in under high ambient temperature(50℃)
• vacuum-impregnated transformer
• mtbf:100k hours at 25℃
• 100% hi-pot tested
• line input fuse protection
