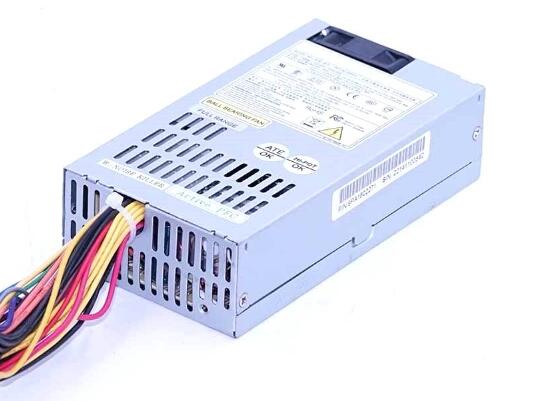

New SPI FLEX ATX BALL-BEARING FAN Power Supply 180W FSP180-50MP

description

fsp180-50mp 180w power supply for spi flex atx ball-bearing fan
fsp180-50mp
input characteristics
input range: 90-265v ac, full range input
frequency: 47-63hz
input current: 4a (rms) at 115v ac, 2a (rms) at 230v a
inrush current: 50a max for 115v ac, 80a max for 230v ac cold start
output characteristics
output voltage/minimum load/maximum load/load reg./line reg./ripple and noise
+3.3v/ 0.3a /16.8a /+/- 5% /+/- 1% /50mv p-p
+5v/ 0.3a /12.0a /+/- 5% /+/- 1% /50mv p-p
+12v/ 1.5a /12.0a/ +/- 5% /+/- 1% /120mv p-p
-12v /0.0a /0.8a /+/- 10% /+/- 2% /120mv p-p
+5vsb/ 0.0a /2.0 a /+/- 5% /+/- 1% /50mv p-p
dielectric withstand:
input to frame ground 1800v ac for 1 second
efficiency:
68% at minimum measured at nominal ac main voltage and frequency with maximum load on all output
rise time:
less than 20ms
hold-up time:
17ms minimum at nominal input voltage
power New signal:
power on delay time 100 ms to 500 ms, off delay 1ms minimum (ttl and cmos compatible)
leakage current:
not exceed 0.5ma at 264v ac, 50hz
