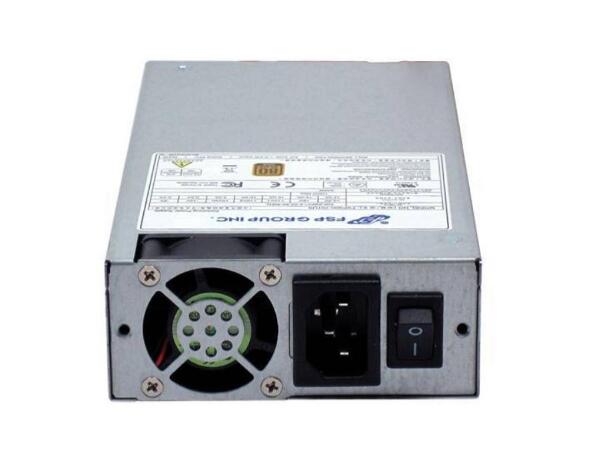

New FSP300-701US FSP GROUP 300W ATX Power Supply SINGLE 1U RACK MOUNT CASE FSP300-701US

description

fsp300-701us fsp group 300w atx power supply single 1u rack mount case fsp300-701us
model : fsp300-701us
details
maximum power : 300w
output
output voltage:
+3.3vdc output : +3.7 vdc minimum, + 4.8vdc maximum
+5vdc output : +5.7 vdc minimum, + 7vdc maximum
+12vdc output : +13.3 vdc minimum, + 16vdc maximum
input voltage
115v ac to 230v ac, 47 ~ 63hz
input frequency range
47 – 63 hz
input current
115v @ 4.0 amps-rms maximum
230v @ 2.0 amps-rms maximum
mtbf
the power supply have a minimum predicted mtbf (mil-hdbk-217) of 100,000 hours of continuous operation at 25 degree c, maximum-output load, and nominal ac inout voltage
efficiency
92% 230v ac
hold-up time
115v / 60hz 16msec. minimum@100% load,
230v / 50hz 16msec. minimum@100% load
protection
over current protection
3.3v:50mv p-p
5v:50mv p-p
12v1:120mv p-p
12v2:120mv p-p
-12v:120mv p-p
5vsb:50mv p-p
-5v:100mv p-p
features
features
80 plus gold
low ripple & noise
output over voltage protection
short circuit protection on all outputs
resettable power shut down
internal 4 cm fan
dual +12v output (+12v/1,+12v/2)
-5v is included
